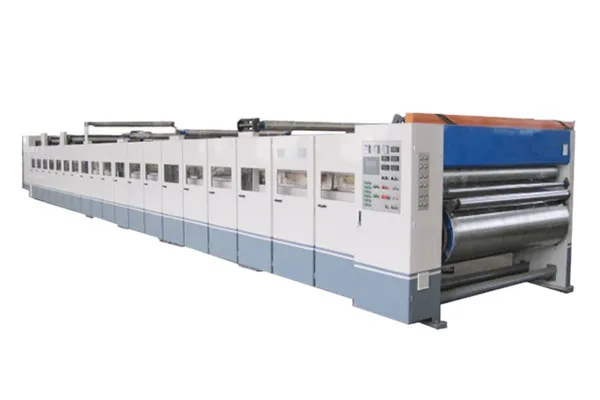

    Double Facer Machine

    The double facer machine DFM is engineered to provide stable bonding and smooth output for corrugated cardboard production. With precision-designed heating plates, advanced steam utilization, and reliable belt alignment systems, it ensures consistent quality and long-term durability in high-speed operations.

    Request a Quote
    Features
    • Durable Heating Plates
      Equipped with 18 plates, each 600 mm wide, precision ground and hard chrome plated; includes a 4 m cooling section for reliable board forming.
    • Full Contact Structure
      Heating plates adopt a pneumatic full-contact pressing design, ensuring uniform bonding across the board.
    • Temperature Control
      Multi-section thermal piping with clear temperature display allows accurate regulation of heating conditions.
    • Efficient Steam Utilization
      Partitioned internal design forces steam into an S-shaped path, ensuring effective steam-water separation and improved energy efficiency.
    • Automatic Belt Alignment
      Upper conveyor belt features dual-side automatic correction, while the lower belt uses a manual S-type correction and tensioning mechanism.
    • Reliable Belt Tensioning
      Upper cotton belt employs dual-cylinder S-type tensioning; lower conveyor belt tensioning is manual with micro-adjustment for flexibility.
    • Stable Output
      Drive roller surface is coated with wear-resistant rubber and crowned (slightly higher at the center), ensuring smooth, flat cardboard output.
    Corrugated Cardboard Production Line
    Request a Quote
    Request a Quote
    Our Products
    Corrugated Cardboard Converting & Carton Box Making Machines

    Corrugated production lines generally use electric heating, steam heating, liquefied gas heating, or thermal oil heating.

    Food and beverage packaging requires corrugated board with moisture resistance and eco-friendly features. A 3-layer or 5-layer corrugated board is usually sufficient, with production speeds of 120–250 m/min.

    Electronic products require strong protection during transportation to prevent physical damage. A 3-layer or 5-layer corrugated board with E-flute is commonly used to balance strength and cost efficiency.

    Large appliances such as refrigerators and washing machines require packaging with high compression strength and shock resistance. A 7-layer corrugated board is typically recommended for this application.

    For lightweight express packaging, a 3-layer corrugated board production line is most suitable. It provides short changeover times, low energy consumption, reduced material usage, and high production speeds of 120–250 m/min, supporting large-volume orders.
