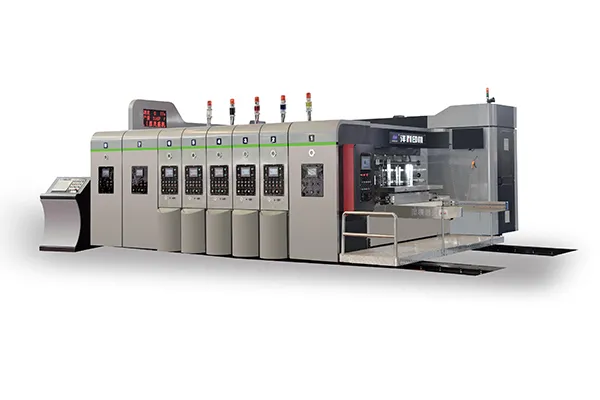

    Printer Slotter Rotary Die Cutter with Lead Edge Feeder, CZYL-B

    The automatic high definition lead edge printing slotting machine is designed for high-speed, precise, and durable carton production. Built with advanced control systems and premium components, it ensures stable operation, efficient order switching, and excellent print accuracy.

    • Printer Slotter Rotary Die Cutter with Lead Edge Feeder, CZYL-B
    • Printer Slotter Rotary Die Cutter with Lead Edge Feeder, CZYL-B
    • Printer Slotter Rotary Die Cutter with Lead Edge Feeder, CZYL-B
    Request a Quote
    Features
    • Independent PLC Control
      Each unit operates with PLC control and a color touch screen, making parameter setting and monitoring intuitive and user-friendly.
    • High-Quality Components
      All electrical, electronic, and pneumatic parts are sourced from trusted brands such as Siemens and Delta for reliable performance.
    • Durable Transmission System
      Main drive gears are manufactured from special imported materials and precision-ground for durability, with an oil pump spray system for continuous lubrication.
    • Efficient Operation
      Auto zero and reset functions, along with order storage capability, accelerate job changes and improve productivity.
    • High Precision Printing
      Equipped with key-free shaft collars to ensure long-term stability and excellent print registration accuracy.
    Specifications
    Model 920 1224 1426 1628
    Max. speed (sheets/min) 300 250 180 150
    Paper feeding accuracy (mm) ±0.5 ±0.5 ±0.5 ±0.5
    Min. sheet size (mm) 260×500 320×600 350×600 380×600
    Max. sheet size (mm) 850×2000 1150×2400 1350×2600 1550×2800
    Skip feeding sheet size (mm) 1200×2000 1400×2400 1600×2600 1800×2800
    Max. printing area (mm) 820×2000 1150×2400 1400×2600 1550×2800
    Printing roller diameter (include plate) (mm) 304 407 482 536
    Printing accuracy (mm) ±0.5 ±0.5 ±0.5 ±0.5
    Printing plate thickness (mm) 7.2 7.2 7.2 7.2
    Max. die cutting size (mm) 900×2000 1200×2400 1400×2600 1600×2800
    Die cutting accuracy (mm) ±0.5 ±0.5 ±0.5 ±0.5
    Main Configuration

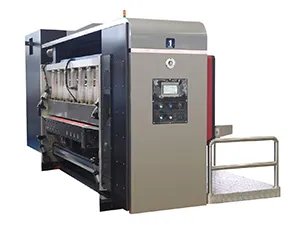

    • Feeding Unit Feeding Unit

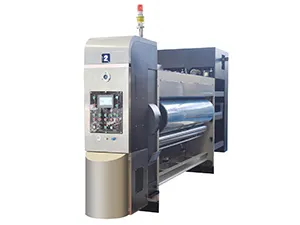

    • Printing UnitPrinting Unit

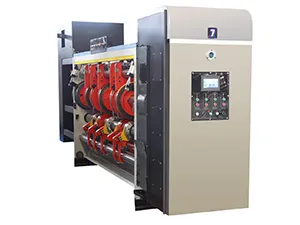

    • Servo Slotting UnitServo Slotting Unit

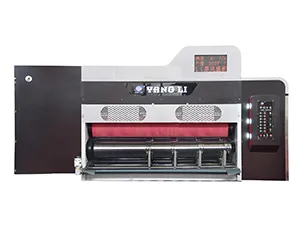

    • PLC Control Rotary Die Cutter Unit (Servo Die-Cutting without Plate)PLC Control Rotary Die Cutter Unit (Servo Die-Cutting without Plate)
