Hydraulic Reel Stand

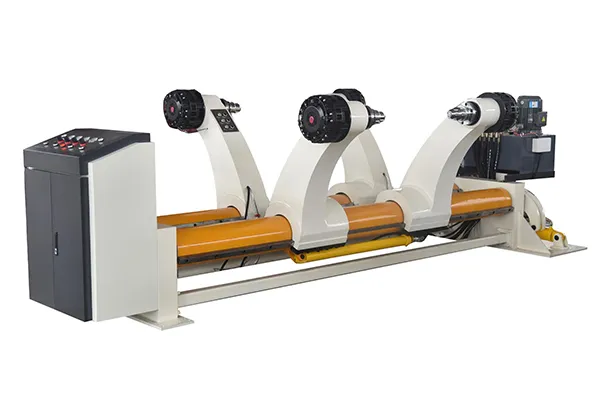

Heavy Duty Hydraulic Reel Stand, CZYL-HRS
  • Heavy Duty Hydraulic Reel Stand, CZYL-HRS
  • Heavy Duty Hydraulic Reel Stand, CZYL-HRS
  • Heavy Duty Hydraulic Reel Stand, CZYL-HRS
    • Heavy Duty Hydraulic Reel Stand, CZYL-HRS

    The heavy duty hydraulic reel stand is designed for stable and efficient raw paper handling in corrugated cardboard production. Its robust four-arm structure, advanced braking system, and hydraulic-electric control functions provide high reliability and precision during operation.

    Request a Quote

    Features

    • Robust Structure
      Double-roller symmetrical four-arm design supports two paper rolls simultaneously for continuous operation.
    • Hydraulic and Electric Control
      Hydraulic system lifts paper rolls while the electric-mechanical system manages pressing and alignment, ensuring smooth performance.
    • Advanced Braking System
      Equipped with imported Italian multi-point brakes and an automatic expanding reel clamp to minimize paper waste.
    • High Capacity
      Handles base paper widths ranging from 1800–2500 mm and supports rolls up to 5 tons.

    Specifications

    Working width (mm) 1800 2000 2200 2500
    Max. paper roll width (mm) 1800 2000 2200 2500
    Min. paper roll width (mm) 80 80 80 80
    Reel stand spindle diameter (mm) Ø240 Ø240 Ø240 Ø240
    Air pressure (MPa) 0.4-0.8
    Dimensions (L×W×H) (m) 4.3×1.8×1.6 4.5×1.8×1.6 4.7×1.8×1.6 4.9×1.8×1.6

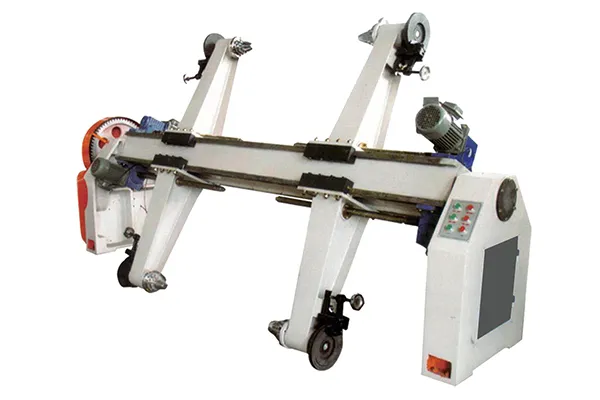

    Electric Shaftless Reel Stand, CZYL-ESM
  • Electric Shaftless Reel Stand, CZYL-ESM
  • Electric Shaftless Reel Stand, CZYL-ESM
  • Electric Shaftless Reel Stand, CZYL-ESM
    • Electric Shaftless Reel Stand, CZYL-ESM

    Designed for stable raw paper feeding in corrugated cardboard production, the electric shaftless reel stand combines a compact four-arm laFAt with manual braking and torsion clutch technology to ensure reliable operation, precise tension control, and operator safety.

    Request a Quote

    Features

    • Compact Design
      Single-slide symmetrical four-arm structure supports two paper rolls simultaneously, saving space while maintaining efficiency.
    • Capacity
      Handles paper rolls up to 1400 mm in diameter with a maximum weight of 2 tons.
    • Tension Control
      Manual disc brake system enables flexible adjustment of paper tension during production.
    • Safe Operation
      Equipped with a uniform torsion clutch in the arm and rotating mechanism for dependable and safe handling.

    Specifications

    Working width (mm) 1800 2000 2200 2500
    Max. paper roll width (mm) 1800 2000 2200 2500
    Min. paper roll width (mm) 80 80 80 80
    Reel stand spindle diameter (mm) Ø240 Ø240 Ø240 Ø240
    Air pressure (MPa) 0.4-0.8
    Dimensions (L×W×H) (m) 4.3×1.8×1.6 4.5×1.8×1.6 4.7×1.8×1.6 4.9×1.8×1.6
    Corrugated Cardboard Production Line
    Request a Quote
    Request a Quote
    Our Products
    Corrugated Cardboard Converting & Carton Box Making Machines

    Corrugated production lines generally use electric heating, steam heating, liquefied gas heating, or thermal oil heating.

    Food and beverage packaging requires corrugated board with moisture resistance and eco-friendly features. A 3-layer or 5-layer corrugated board is usually sufficient, with production speeds of 120–250 m/min.

    Electronic products require strong protection during transportation to prevent physical damage. A 3-layer or 5-layer corrugated board with E-flute is commonly used to balance strength and cost efficiency.

    Large appliances such as refrigerators and washing machines require packaging with high compression strength and shock resistance. A 7-layer corrugated board is typically recommended for this application.

    For lightweight express packaging, a 3-layer corrugated board production line is most suitable. It provides short changeover times, low energy consumption, reduced material usage, and high production speeds of 120–250 m/min, supporting large-volume orders.
