Single Facer Machine

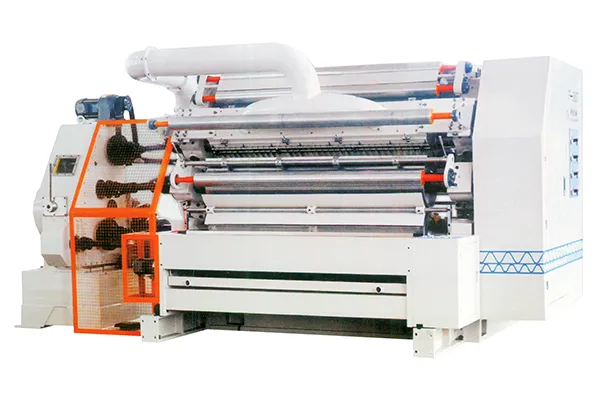

Single Facer Machine (for 2 Liners + 2 Flutings), CZYL-DSF-405E

• Working width: 1600mm, 1800mm, 2000mm, 2200mm, 2500mm
• Design speed: 250m/min
• Production speed: 180-230m/min
• Operation direction: left-hand or right-hand (depending on user's plant layout)
• Working temperature: 160℃ to 200℃
• Air pressure: 0.4-0.9MPa
• Steam pressure: 0.8-1.3MPa
• Corrugated flute types: A, B, C, E, UV, UVV (optional)

Request a Quote

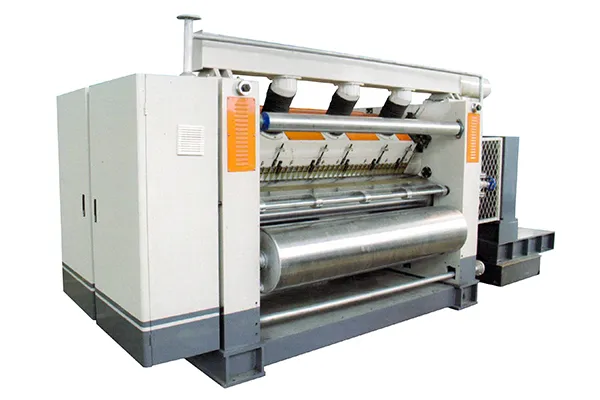

Vacuum Single Facer, CZYL-SFM-380S

The vacuum single facer is engineered to deliver high-speed, stable performance with efficient flute changeovers and compact design. Its robust build, advanced control system, and reliable gluing unit make it a versatile choice for corrugated board production.

• Design speed: 200m/min
• Effective width: 1400-2500mm
• Corrugating roll diameter: Ø380mm (varies with flute type)
• Pressure roll diameter: Ø385mm
• Pre-heating roll diameter Ø400mm

Request a Quote

Features

• Dual Corrugating Rolls
  Two sets of corrugating rolls made of high-quality alloy steel. One set operates while the other remains preheated and on standby for quick flute changes.
• Space-Saving Design
  Offers the functionality of two machines within one, significantly reducing floor space requirements.
• High-Strength Rolls
  Upper and lower corrugating rolls are heat-treated to HRC58°–60°, precision ground, and chrome plated. Optional tungsten carbide rolls are available for extended durability.
• Smart Control System
  PLC-controlled with a touchscreen interface, enabling easy operation and real-time monitoring of running parameters.
• Reliable Transmission
  Independent drive box with five-shaft transmission, hardened gears, and oil-pump spray lubrication ensures smoother running, lower noise, and extended gear life.
• Efficient Gluing System
  Glue thickness adjusted by electric push rod with an electric glue-separating device. The gluing unit runs independently when the main machine stops, preventing starch from drying out.

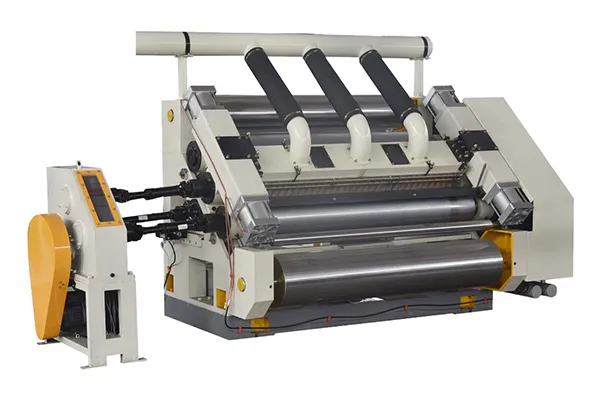

Vacuum Single Facer, CZYL-SFM-360S

Built for medium-speed corrugated board production, the vacuum single facer combines reliable operation with reduced noise and stable flute formation. Its pneumatic control system, durable corrugating rolls, and advanced gluing unit deliver consistent performance and cost-effective production.

• Design speed: 150m/min
• Effective width: 1400-2500mm
• Corrugating roll diameter: Ø320mm, Ø360mm

Request a Quote

Features

• Low-Noise Drive System
  Gearbox uses oil-immersed lubrication to minimize noise, with universal joint transmission and optional power source isolation.
• Pneumatic Control
  Lifting operations for the corrugating roll, pressure roll, and gluing roll are all pneumatically managed.
• Vacuum Paper Guiding
  Vacuum suction with adjustable airflow ensures stable flute formation even at high operating speeds.
• High-Temperature Bearings
  Bearings of corrugating and pressure rolls are lubricated with heat-resistant grease to enhance durability.
• Automatic Glue Circulation
  Continuous glue circulation system prevents sedimentation and ensures consistent glue supply.
• Durable Corrugating Rolls
  Upper and lower rolls made of 52CrMo alloy steel, heat-treated to HRC58–60° and precision ground for long-lasting performance.
• Flexible Glue Separation
  Choice of manual or electric glue-separating device to suit production needs.
• Independent Operation
  Gluing unit can run independently or stop with the main machine, preventing glue from drying during downtime.

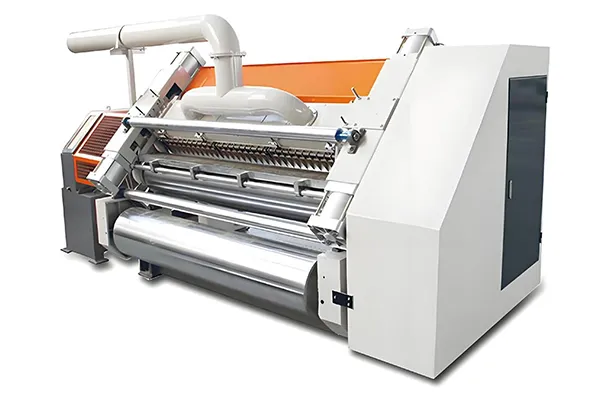

Vacuum Single Facer, CZYL-SFM-280S

As a compact solution for single facer production, this vacuum single facer combines low-noise operation with stable flute formation and reliable gluing performance. Its pneumatic control, durable corrugating rolls, and advanced glue application system make it ideal for consistent and efficient corrugated board processing.

• Design speed: 80m/min
• Effective width: 1400-2200mm
• Corrugating roll diameter: Ø280mm

Request a Quote

Features

• Low-Noise Drive
  Gearbox uses oil-immersed lubrication to reduce noise, with universal joint transmission and isolated power source.
• Pneumatic Control
  Corrugating roll, pressure roll, and glue roll lifting are all pneumatically operated.
• Vacuum Paper Guiding
  Equipped with vacuum suction and adjustable airflow to ensure stable flute formation at high speeds.
• High-Temperature Bearings
  Corrugating and pressure roll bearings use heat-resistant grease for long-lasting performance.
• Automatic Glue Circulation
  Continuous glue supply system prevents drying and maintains stable adhesive application.
• Durable Corrugating Rolls
  Upper and lower corrugating rolls made of 52CrMo high-quality alloy steel, heat-treated to HRC58°–60° and precision ground for accuracy.
• Advanced Glue Roll
  Glue roll surface is engraved with a reticulated pattern and chrome plated for precise, even coating.
• Flexible Glue Separation
  Available with manual or electric glue-separating device.
• Independent Glue Unit
  Gluing section can run independently or stop with the main machine; optional main motor frequency control available.
