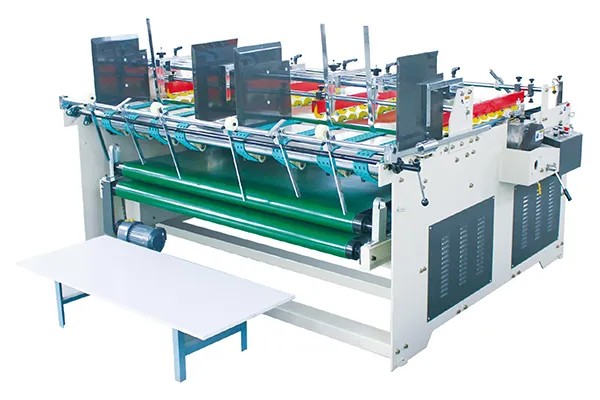

    Folder Gluer Machine (Press Type), CZYL-PFM

    Deliver reliable and efficient carton bonding with the folder gluer machine (press type), designed for industries including food, toys, tobacco, pharmaceuticals, gifts, crafts, and packaging. Its advanced system reduces glue consumption, saves labor, and ensures neat, strong adhesion for consistent high-quality results.

    Request a Quote
    Features
    • Wide Application Range
      Suitable for multiple industries such as food, toys, tobacco, pharmaceuticals, gifts, crafts, and carton packaging.
    • Glue Saving
      Uses only about one-third of the glue compared to manual gluing, significantly reducing costs.
    • Labor Efficiency
      Machine speed reaches up to 56 m/min, offering 3–4 times the efficiency of manual operation.
    • Strong Bonding
      Provides firm, neat adhesion without glue overflow. Equipped with a patented dual-head grinder that removes UV film or laminated layers at the glue flap, improving adhesion and solving seasonal carton de-bonding issues.
    Specifications
    Max. sheet size (mm) 2200×2100
    Min. sheet size (mm) 200×260
    Machine dimensions (mm) 3200×2200×1300
    Machine weight (ton) 1.2
    Power supply 380V, 50Hz
    Power (kW) 1.15
    Current (A) 7
    Carton Box Making Machines
    Request a Quote
    Request a Quote
    Our Products
    Corrugated Cardboard Converting & Carton Box Making Machines

    The fully automatic folder gluer automates feeding, folding, gluing, pressing, and delivery. It operates at 100–300 boxes per minute and uses a servo-controlled glue system that adapts to different board thicknesses, ensuring precise gluing without leakage or excess.

    The press-type folder gluer features an intelligent pressure adjustment system that adapts to varying board thicknesses, providing firm adhesion while preventing board crushing or weak bonding.

    The semi-automatic folder gluer combines manual assistance with automated functions, operating at approximately 40 boxes per minute. It enables quick order changes and is suitable for versatile mid-sized operations.

    The fully automatic folder gluer & stitcher integrates gluing and stitching, supporting glue-only, stitch-only, or combined modes. It achieves ±0.5 mm accuracy and operates at 80–220 sheets per minute.

    The dual-servo semi-automatic single-piece stitcher handles single boards without pre-folding. It uses X/Y-axis servo motor control for ≤±0.5 mm precision and reaches speeds up to 450 stitches per minute.

    The four-servo semi-automatic double-piece stitcher combines X/Y-axis servo control, an independent stitching head, and servo-controlled pressure for accurate and strong stitching. It supports single- and double-piece cartons with multiple stitching modes (single, double, reinforced) at speeds up to 600 stitches per minute.
