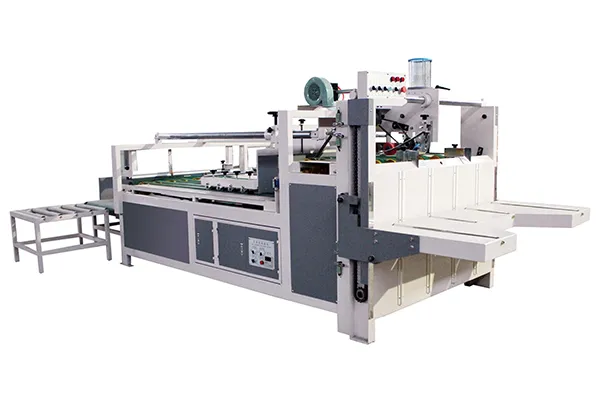

    Semi-Automatic Folder Gluer Machine, CZYL-SFM

    The semi-automatic folder gluer machine is designed to replace traditional copper nail binding. This machine improves production efficiency, ensures strong adhesion, and delivers high-quality finished cartons, making it an ideal choice for packaging manufacturers.

    Request a Quote
    Features
    • Eco-Friendly Bonding
      Eliminates traditional copper nail binding, reducing waste and enhancing sustainability.
    • Improved Productivity
      Increases efficiency compared to manual methods, while maintaining consistent product quality.
    • Reliable Machine Structure
      Built with a robust main frame that integrates frame, lifting table, and conveying systems.
    • Comprehensive Components
      Includes front and middle conveying devices, front correcting unit, middle pressing unit, finished side output unit, and a reliable electrical control system for smooth operation.
    Specifications
    Max. size (length + width) (mm) 2800
    Min. size (length + width) (mm) 340
    Max. size (width + height) (mm) 1515
    Min. size (width + height) (mm) 250
    Cardboard feeding height (mm) 900
    Motor power (kW) 2.3
    Machine weight (kg) 2000
    Machine speed (sheets/min) 40
    Machine dimensions (L×W×H) (mm) 5500×1800×2000
    Carton Box Making Machines
    Request a Quote
    Request a Quote
    Our Products
    Corrugated Cardboard Converting & Carton Box Making Machines

    The fully automatic folder gluer automates feeding, folding, gluing, pressing, and delivery. It operates at 100–300 boxes per minute and uses a servo-controlled glue system that adapts to different board thicknesses, ensuring precise gluing without leakage or excess.

    The press-type folder gluer features an intelligent pressure adjustment system that adapts to varying board thicknesses, providing firm adhesion while preventing board crushing or weak bonding.

    The semi-automatic folder gluer combines manual assistance with automated functions, operating at approximately 40 boxes per minute. It enables quick order changes and is suitable for versatile mid-sized operations.

    The fully automatic folder gluer & stitcher integrates gluing and stitching, supporting glue-only, stitch-only, or combined modes. It achieves ±0.5 mm accuracy and operates at 80–220 sheets per minute.

    The dual-servo semi-automatic single-piece stitcher handles single boards without pre-folding. It uses X/Y-axis servo motor control for ≤±0.5 mm precision and reaches speeds up to 450 stitches per minute.

    The four-servo semi-automatic double-piece stitcher combines X/Y-axis servo control, an independent stitching head, and servo-controlled pressure for accurate and strong stitching. It supports single- and double-piece cartons with multiple stitching modes (single, double, reinforced) at speeds up to 600 stitches per minute.
