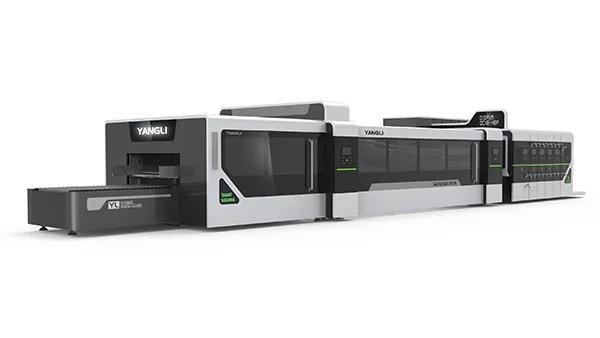

Printer Slotter Die Cutter Folder Gluer, CZYL-PCM-A
The printer slotter die cutter folder gluer is a high-speed production line designed to complete printing, slotting, die cutting, folding, and gluing in one continuous process. It combines smart control systems, durable construction, and advanced folding mechanisms to deliver precise, stable, and efficient corrugated carton production.
Features
- Smart Touch Control
10-inch full-color touchscreen stores up to 200 orders with functions for order lookup, zero-position input, auto/manual phase adjustment, machine parameter management, plate lifting (manual/automatic), and automatic display of production quantity and speed. - Durable Construction
All rotating rollers are manufactured from premium steel, hard chrome plated, and precision ground; gears are alloy steel, heat-treated and ground for long service life. - Precision Gap Adjustment
High-accuracy self-locking worm gear system with a three-rod disc handle design ensures adjustments are quick and easy. - Automated Slotting Control
Slotting section offers electric adjustment for knife seat axial, longitudinal, and box height dimensions. - Cost-Saving Die Cutting System
Differential speed compensation with cam-type soft roller enables 40 mm transverse movement for even pad wear, extending pad life and reducing operating costs. - Stable Sheet Feeding
Down-inserting sheet delivery system prevents popping from hard or poorly bonded boards, ensuring stable feeding and high-quality gluing. - Full PLC Control
PLC system automatically adjusts settings based on order parameters, providing fast, accurate changeovers. - Accurate Folding & Creasing
Secondary creasing and right-angle squaring mechanisms ensure precise folding, stable performance, and consistent joint gap control.
Specifications
| Model | | | |
| Max. printing area (L×W) (mm) | 1200×2400 | 1400×2600 | 1600×2800 |
| Max. die-cut size (L×W) (mm) | 1200×2400 | 1400×2600 | 1600×2800 |
| Max. continuous feeding paper size (L×W) (mm) | 1150×2400 | 1350×2600 | 1550×2800 |
| Max. skip feeding paper size (L×W) (mm) | 1400×2400 | 1600×2600 | 1800×2800 |
| Min. sheet size (L×W) (mm) | 320×600 | 350×600 | 380×600 |
| Printing plate thickness (mm) | 7 | 7 | 7 |
| Applicable cardboard thickness (mm) | 2-10 | 2-10 | 2-10 |
| Max. machine speed (sheets/min) | 300 | 180 | 150 |
| Printing accuracy (mm) | ±0.5 | ±0.5 | ±0.5 |
| Slotting accuracy (mm) | ±1 | ±1 | ±1 |
| Paper feeding accuracy (mm) | ±0.5 | ±0.5 | ±0.5 |
Down-Folding Carton Folder Gluer
The down-folding carton folder gluer is designed as a standalone unit that can be placed behind a printing machine. It combines reliable sheet delivery, intelligent control, and precision folding to ensure high-quality carton gluing, even under challenging board conditions.
Features
- Stable Sheet Delivery
Down-inserting sheet feeding system prevents popping caused by stiff or poorly bonded boards, ensuring smooth operation and consistent gluing quality. - Smart Control
PLC program automatically adjusts settings based on input order parameters, enabling efficient and accurate changeovers. - Accurate Folding & Creasing
Secondary creasing and right-angle squaring mechanisms guarantee precise folding and uniform control of joint gaps. - Independent Drive System
Right-angle squaring mechanism is powered by a dedicated motor, delivering pure power transmission for stable and reliable performance. - Consistent Gap Control
Even if slotting or creasing quality is imperfect, the secondary creasing and squaring mechanisms maintain uniform joint gaps, with adjustable size as needed. - Reliable Stacking & Counting
Equipped with a secondary aligning system at the stacking and counting section, eliminating scissor differences for perfectly aligned cartons.
