Individual Machines for Corrugated Cardboard Production

Corrugated Sheet Stacker Machine

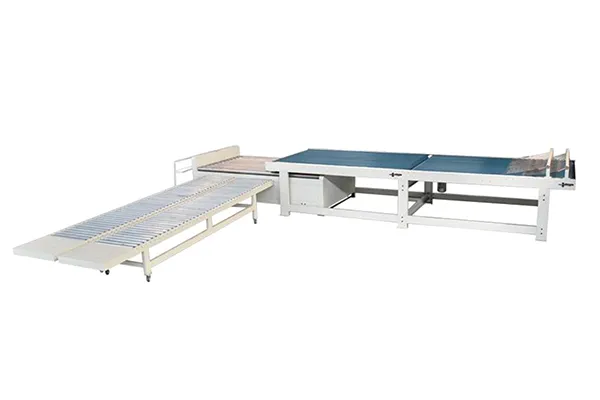

Right-Angle Corrugated Sheet Stacker, LSM
  • Right-Angle Corrugated Sheet Stacker, LSM
  • Right-Angle Corrugated Sheet Stacker, LSM
  • Right-Angle Corrugated Sheet Stacker, LSM
    • Right-Angle Corrugated Sheet Stacker, LSM

    Built with a strong steel frame and advanced control functions, the right-angle corrugated sheet stacker delivers reliable performance for precise and efficient sheet stacking. It is designed to handle boards smoothly, adjust dimensions with ease, and discharge stacks accurately to meet production requirements.

    Request a Quote

    Features

    • Durable Construction
      Welded with No.14 channel steel for strength, rigidity, and long service life.
    • Adjustable Dimensions
      Electric adjustment of board size allows accurate setup for different stacking requirements.
    • Pneumatic Output Control
      Pneumatic system enables precise and reliable lateral sheet discharge.
    • Variable Speed Control
      Electrically adjustable conveyor speed adapts to different production conditions.
    • Easy Discharge
      Foot pedal switch allows sheets to be moved out once the required number or stack height is reached.
    • Stable Sheet Conveying
      Wide longitudinal conveyor belts ensure smooth and steady board transport.

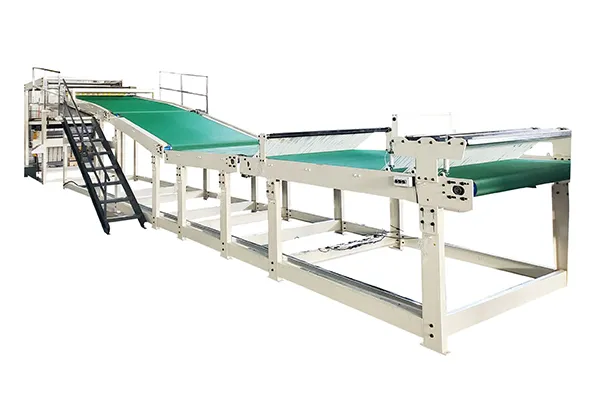

    Gantry Corrugated Sheet Stacker, UDM
  • Gantry Corrugated Sheet Stacker, UDM
  • Gantry Corrugated Sheet Stacker, UDM
    • Gantry Corrugated Sheet Stacker, UDM

    The gantry corrugated sheet stacker is designed for fast, precise, and efficient stacking operations in corrugated board production. With a changeover time of just 5 seconds, it ensures smooth order transitions and stable stacking performance, making it suitable for both large-scale and small-batch orders.

    Request a Quote

    Features

    • High-Efficiency Gantry Design
      Gantry-type stacking enables order changeover in just 5 seconds, with automatic counting, sheet discharge, and order switching.
    • Smooth Automatic Discharge
      Frequency-controlled lateral discharge activates automatically once the preset sheet quantity is reached, ensuring stability.
    • Precise Backstop Control
      AC servo system provides accurate positioning, allowing quick and precise order changes.
    • Adaptable for Small Orders
      Automatic backstop shifting function supports efficient stacking for small batch production.
    • Stable Platform
      Flat-belt stacking platform with AC servo-controlled lifting ensures smooth, even, and neatly aligned stacks.
    • Integrated Conveying System
      Equipped with motorized side conveyor and dual-position trolleys for efficient sheet transfer.
    • User-Friendly Operation
      Color touchscreen interface simplifies on-site control and monitoring.
    • Full Automation
      Increases efficiency, reduces manpower needs, and lowers operator workload.
    Corrugated Cardboard Production Line
    Request a Quote
    Request a Quote
    Our Products
    Corrugated Cardboard Converting & Carton Box Making Machines

    Corrugated production lines generally use electric heating, steam heating, liquefied gas heating, or thermal oil heating.

    Food and beverage packaging requires corrugated board with moisture resistance and eco-friendly features. A 3-layer or 5-layer corrugated board is usually sufficient, with production speeds of 120–250 m/min.

    Electronic products require strong protection during transportation to prevent physical damage. A 3-layer or 5-layer corrugated board with E-flute is commonly used to balance strength and cost efficiency.

    Large appliances such as refrigerators and washing machines require packaging with high compression strength and shock resistance. A 7-layer corrugated board is typically recommended for this application.

    For lightweight express packaging, a 3-layer corrugated board production line is most suitable. It provides short changeover times, low energy consumption, reduced material usage, and high production speeds of 120–250 m/min, supporting large-volume orders.
