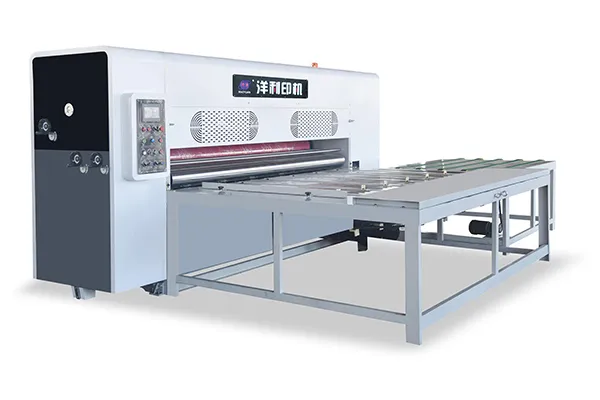

    Corrugated Cardboard Die Cutting Machine with Chain Feeder, CZYL-RDC

    The corrugated cardboard die cutting machine with chain feeder is a specialized corrugated cardboard die cutting machine designed to handle color boxes, cartons, and irregular-shaped packaging products with precision and speed. It combines rotary cutting efficiency with advanced feeding and control systems to deliver consistent, high-quality results.

    Request a Quote
    Features
    • Specialized for Die Cutting
      Designed for precise shaping of color boxes, cartons, and various irregular packaging products.
    • Efficient Rotary Cutting
      Uses a dual-roller rotary pressing system with urethane soft templates. Die-cutting speed automatically synchronizes with line speed, completing edge trimming, slot cutting, punching, and creasing in one pass.
    • Vacuum Paper Feeding
      Equipped with vacuum-assisted paper feeding for stable and accurate sheet transfer.
    • High Precision & Speed
      Main drive uses electromagnetic speed control, with computer-adjusted die-cutting phase for high accuracy, fast performance, and easy operation.
    Specifications
    Model 920 922 1224 1228 1426 1628
    Max. speed (sheets/min) 60 60 60 60 60 60
    Paper feeding accuracy (mm) ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5
    Min. sheet size (mm) 220×500 220×500 320×600 320×600 350×600 350×600
    Max. sheet size (mm) 900×2000 900×2200 1200×2400 1200×2800 1400×2600 1600×2800
    Min. slotting size (L×W×H) (mm) 170×80×80 170×80×80 180×80×80 180×80×80 180×80×80 180×80×80
    Max. slotting depth (mm) 230 230 310 310 370 410
    Additional knifes can be added to increase slotting depth
    Slotting accuracy (mm) ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5
