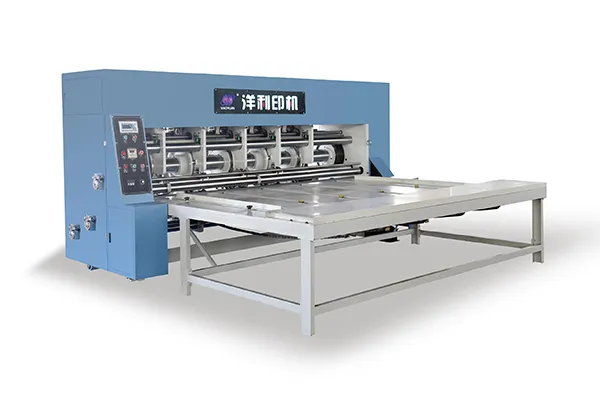

    Corrugated Cardboard Slotting Machine with Chain Feeder, CZYL-RS4

    The corrugated cardboard slotting machine with chain feeder is a multifunctional unit designed to combine corner cutting, slotting, creasing, and edge trimming into one operation. It is particularly suitable for handling single cardboard sheets, including warped boards, making it versatile for a wide range of applications.

    Request a Quote
    Features
    • Integrated Processing
      Combines corner cutting, slotting, rolling, and edge trimming into one efficient workflow.
    • Manual Feeding
      Supports single-sheet manual feeding, adaptable even for warped corrugated boards.
    • Electric Phase Adjustment
      Slotting knife seat allows 360° forward and reverse rotation with circumferential adjustment.
    • Easy Fine-Tuning
      Motorized micro-adjustment ensures convenient operation, precise dimension setting, and reliable locking.
    • Accurate Slotting
      Guarantees high precision and consistent slotting results.
    Specifications
    Model 920 922 1224 1228 1426 1628
    Max. speed (sheets/min) 60 60 60 60 60 60
    Paper feeding accuracy (mm) ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5
    Min. sheet size (mm) 220×500 220×500 320×600 320×600 350×600 350×600
    Max. sheet size (mm) 900×2000 900×2200 1200×2400 1200×2800 1400×2600 1600×2800
    Min. slotting size (L×W×H) (mm) 220×60×70 220×60×70 250×60×80 250×60×80 250×60×80 250×60×80
    Max. slotting depth (mm) 230 230 310 310 370 410
    Additional knifes can be added to increase slotting depth
    Slotting accuracy (mm) ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5
