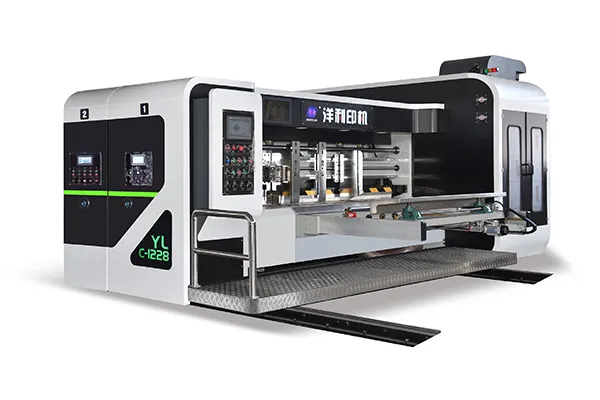

    Automatic Corrugated Cardboard Slotter Die Cutter, CZYL-SSK

    The automatic corrugated cardboard slotter die cutter is an intelligent slotting machine engineered for high accuracy and flexible carton production. It combines advanced die-cutting control with efficient feeding and energy-saving systems, making it a reliable choice for both large-scale and customized packaging orders.

    • Automatic Corrugated Cardboard Slotter Die Cutter, CZYL-SSK
    • Automatic Corrugated Cardboard Slotter Die Cutter, CZYL-SSK
    Request a Quote
    Features

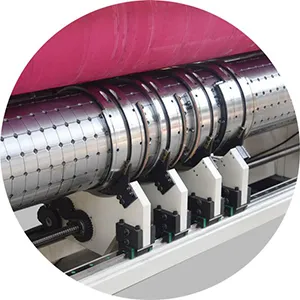

    • Die-Cutting Precision
      Computerized and electric digital control of die-cutting knife phase with 360° adjustment. Cross adjustment range of ±5 mm.
    • Durable Rubber Pad System
      Automatic lateral movement and line-speed compensation ensure uniform wear of the die-cutting rubber pad. Includes a pad repair system for repeated use, extending service life and maintaining high-quality results.

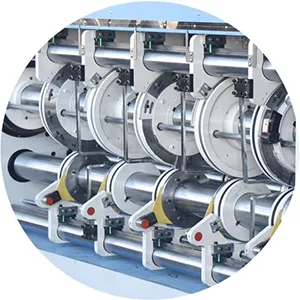

    • Cam-Driven Roller Movement
      Rubber pad roller equipped with cam-type horizontal traverse of ±35 mm to extend pad durability.
    • Stable Paper Feeding
      Lightweight aluminum alloy rear-kick vacuum feeding mechanism with multiple rolling bearings ensures smooth and stable operation.
    • Automated Alignment
      Left and right side guides, plus rear stopper, are digitally controlled via computer and electric systems. Pneumatic side baffles provide precise sheet alignment.
    • Flexible Feeding Options
      Supports both continuous and skip feeding, with infrared photoelectric counting for accuracy.
    • Energy-Saving Drive
      Equipped with Siemens low-voltage electrical components and a frequency conversion drive system, reducing power consumption by up to 30%.
    Specifications of Servo Cardboard Die Cutting Machine
    Model 920 1224 1426 1628
    Max. speed (sheets/min) 300 250 180 150
    Max. paper feeding size (mm) 900×2000 1200×2400 1400×2600 1600×2800
    Max. die cutting size (mm) 900×2000 1200×2400 1400×2600 1600×2800
    Cardboard thickness (mm) 2-10 2-10 2-10 2-10
    Specifications of Servo Cardboard Slotting Machine
    Model 920 922 1224 1228 1426 1628
    Max. speed (sheets/min) 300 260 250 200 180 150
    Paper feeding accuracy (mm) ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5
    Min. sheet size (mm) 250×500 250×500 320×600 320×600 350×600 350×600
    Max. sheet size (mm) 900×2000 900×2200 1200×2400 1200×2800 1400×2600 1600×2800
    Min. slotting size (L×W×H) (mm) 220×60×70 220×60×70 250×60×80 250×60×80 250×60×80 250×60×80
    Max. slotting depth (mm) 230 230 310 310 370 410
    Additional knifes can be added to increase slotting depth
    Slotting accuracy (mm) ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5
