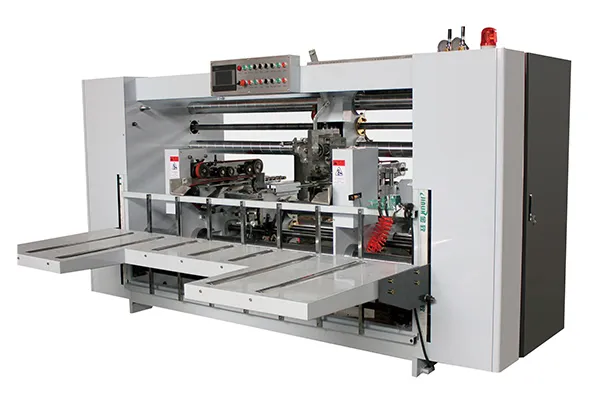

    Semi-Automatic Stitcher Machine for Two-Piece Box, CZYL-SSP2

    Designed for flexibility, this semi-automatic stitcher machine handles both one-piece and two-piece cartons as well as irregular box types. Its full electric size control, quick setup, and multiple stitching modes make it a reliable choice for large-format and heavy-duty carton production.

    Request a Quote
    Features
    • Dual-Purpose Design
      Capable of stitching one-piece cartons, two-piece cartons, and irregular boxes
    • Fast Size Changeover
      Fully electric size adjustment completed within 2–3 minutes
    • Flexible Stitching Options
      Supports reinforced stitching, single stitching, and double-row stitching in a single pass
    • Automatic Counting & Bundling
      Feeder section counts cartons automatically and delivers finished bundles for strapping
    • Ideal for Large Cartons
      Designed for efficient and effortless stitching of oversized cartons
    • Adjustable Nail Pitch
      Nail spacing adjustable from 20–120 mm, with automatic computer-controlled settings
    • Fault Display
      On-screen diagnostics for quick and easy troubleshooting
    • Box Compatibility
      Suitable for cartons with bottoms but no covers (special specification)
    • Corrugated Board Range
      Compatible with 3-ply, 5-ply, and 7-ply corrugated board (7-ply requires special configuration)
    • Servo Drive System
      Equipped with three servo motors (two for the stitching heads and one for pitch control) to ensure precision and stability
    Specifications

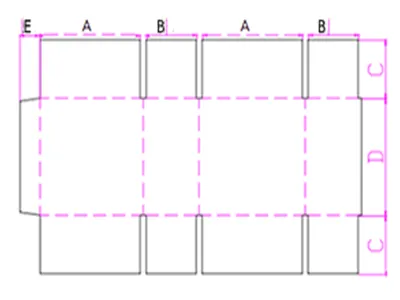

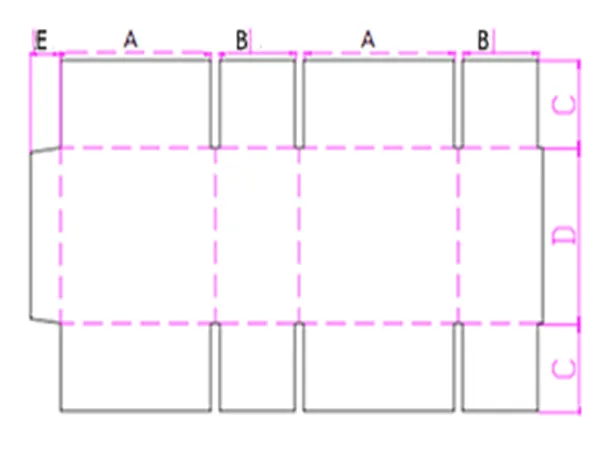

    Model SDJ-3000B SDJ-3500B SDJ-4000B SDJ-4500B
    Max. sheet size (A+B)×2 (mm) 6000 7000 8000 9000
    Min. sheet size (A+B)×2 (mm) 1220 1220 1220 1220
    Max. carton length (A) (mm) 2850 3350 3850 4350
    Min. carton length (A) (mm) 430 430 430 430
    Max. carton width (B) (mm) 1500 1750 2000 2250
    Min. carton width (B) (mm) 150 150 150 150
    Max. sheet size (C+D+C) (mm) 3200 3200 3200 3200
    Min. sheet size (C+D+C) (mm) 400 400 400 400
    Max. flap size (C) (mm) 600 600 600 600
    Min. flap size (C) (mm) 80 (standard)
    20 (optional)
    Max. carton width 220     		80 (standard)
    20 (optional)
    Max. carton width 220     		80 (standard)
    20 (optional)
    Max. carton width 220     		80 (standard)
    20 (optional)
    Max. carton width 220
    Max. carton height (D) (mm) 2000 2000 2000 2000
    Min. carton height (D) (mm) 200 200 200 200
    Max. stitching tongue width (E) (mm) 40 40 40 40
    Stitch pitch (mm) 30-120 30-120 30-120 30-120
    Stitch count 2-99 2-99 2-99 2-99
    Stitching speed (stitches/min) 600 600 600 600
    Machine weight (ton) 4 4.3 4.6 5
