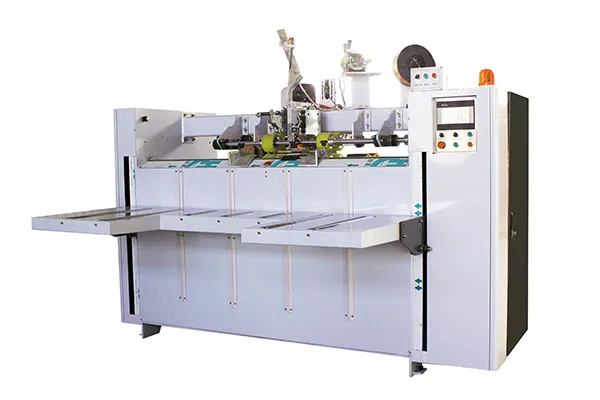

    Semi-Automatic Stitcher Machine for One-Piece Box, CZYL-SSP1

    The semi-automatic stitcher machine is designed for one-piece carton box production, offering fast changeovers, flexible stitching options, and user-friendly operation. Equipped with a dual-servo system and touchscreen controls, it delivers high-speed, precise stitching while reducing labor intensity.

    Request a Quote
    Features
    • Quick Size Change
      Complete size adjustments within just one minute
    • Easy Operation
      Simple controls require no prior experience
    • Flexible Stitching
      Supports single, double, and reinforced stitches for different carton requirements
    • Automatic Counting & Bundling
      Feeder section counts cartons automatically and delivers them in bundles for convenient strapping
    • Touchscreen Control
      Intuitive interface for easy parameter setting and monitoring
    • Dual Servo Drive
      Ensures stable, precise operation with high reliability
    • Adjustable Nail Pitch
      Stitching distance adjustable up to 100 mm
    • High-Speed Output
      Achieves up to 450 stitches per minute
    • Customizable Settings
      Stitching distance with or without box covers can be preset directly on the touchscreen
    Specifications

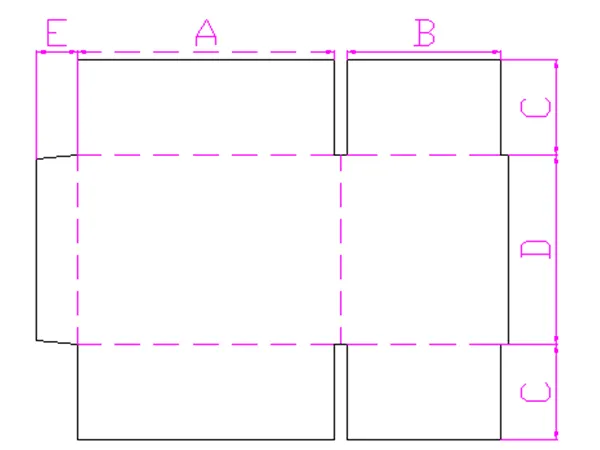

    Model SDJ-1600D SDJ-2000 SDJ-2500
    Max. sheet size (A+B)×2 (mm) 3200 4000 5000
    Min. sheet size (A+B)×2 (mm) 980 980 980
    Max. carton length (A) (mm) 1480 1880 2380
    Min. carton length (A) (mm) 370 370 370
    Max. carton width (B) (mm) 800 1000 1250
    Min. carton width (B) (mm) 120 120 120
    Max. sheet size (C+D+C) (mm) 2900 2900 2900
    Min. sheet size (C+D+C) (mm) 400 400 400
    Max. flap size (C) (mm) 450 (standard)
    600 (optional)     		450 (standard)
    600 (optional)     		450 (standard)
    600 (optional)
    Min. flap size (C) (mm) 80 (standard)
    20 (optional)     		80 (standard)
    20 (optional)     		80 (standard)
    20 (optional)
    Max. carton height (D) (mm) 2000 2000 2000
    Min. carton height (D) (mm) 200 200 200
    Max. stitching tongue width (E) (mm) 40 40 40
    Stitch pitch (mm) 30-150 30-150 30-150
    Stitch count 2-99 2-99 2-99
    Stitching speed (stitches/min) 600 600 600
    Machine weight (ton) 3.0 3.2 3.5
