Cardboard Die Cutting Machine

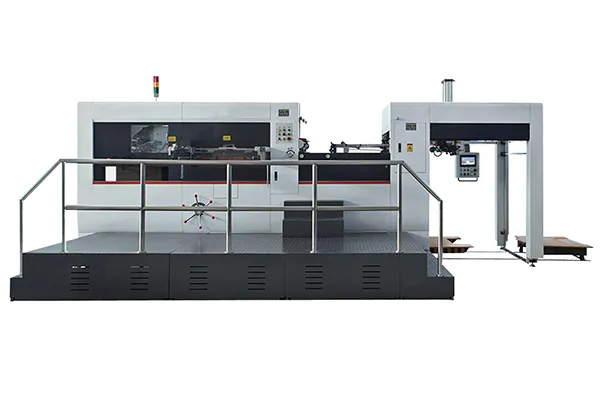

Automatic Flatbed Die-Cutting Machine, CZYL-ADM
The automatic flatbed die-cutting machine (model MY1080E) is designed for high-end color boxes and corrugated cartons, delivering precision and efficiency in die-cutting and creasing operations. With advanced feeding, positioning, and control systems, it ensures stable performance, user-friendly operation, and reliable safety features, making it a cost-effective solution for packaging production.
Features
- Advanced Feeding System
High-strength gripper bar with precision front, rear, and side positioning ensures accurate handling of board, card, and corrugated paper. - Precision Mechanisms
Equipped with a high-accuracy intermittent mechanism, pneumatic clutch, and pneumatic plate locking for fast and stable operation. - Smart Control
Programmable controller with human–machine interface provides digital display of speed, total run time, and real-time fault diagnostics for easy troubleshooting. - Smooth and Flexible Drive
Main motor driven by frequency inverter with stepless speed regulation ensures smooth running. - Safety Assured
Multiple sensors and protective devices safeguard both machine and operator. - Easy Pressure Adjustment
Convenient die-cutting pressure regulation enhances efficiency and makes the machine a high-value choice for various packaging needs.
Specifications
| Max. sheet size (mm) | 1080×780 |
| Min. sheet size (mm) | 400×370 |
| Max. cutting size (mm) | 1040×750 |
| Max cutting speed (sheets/hour) | 7500 |
| Sheet thickness (mm) | Cardboard: 0.1-1.5 Corrugated board: ≤4 |
| Max. pressure (t) | 320 |
| Total power (kW) | 16.95 |
| Machine weight (t) | 17.8 |
| Machine dimensions (L×W×H) (mm) | 6850×3950×2160 |
